Working with a Workspace - Tutorial

In this tutorial, you’ll learn how to work with a Workspace in JupyterHub.

At this point, you should have completed the Set Up Workspace tutorial. If you haven’t done so yet, we highly recommend completing it first.

In the previous tutorial, you set up your first Workspace. Now, you'll launch it and begin working within JupyterHub.

1. Launch Your Workspace in JupyterHub

  • Go to your Dashboard and click the View button for your Demo Workspace.

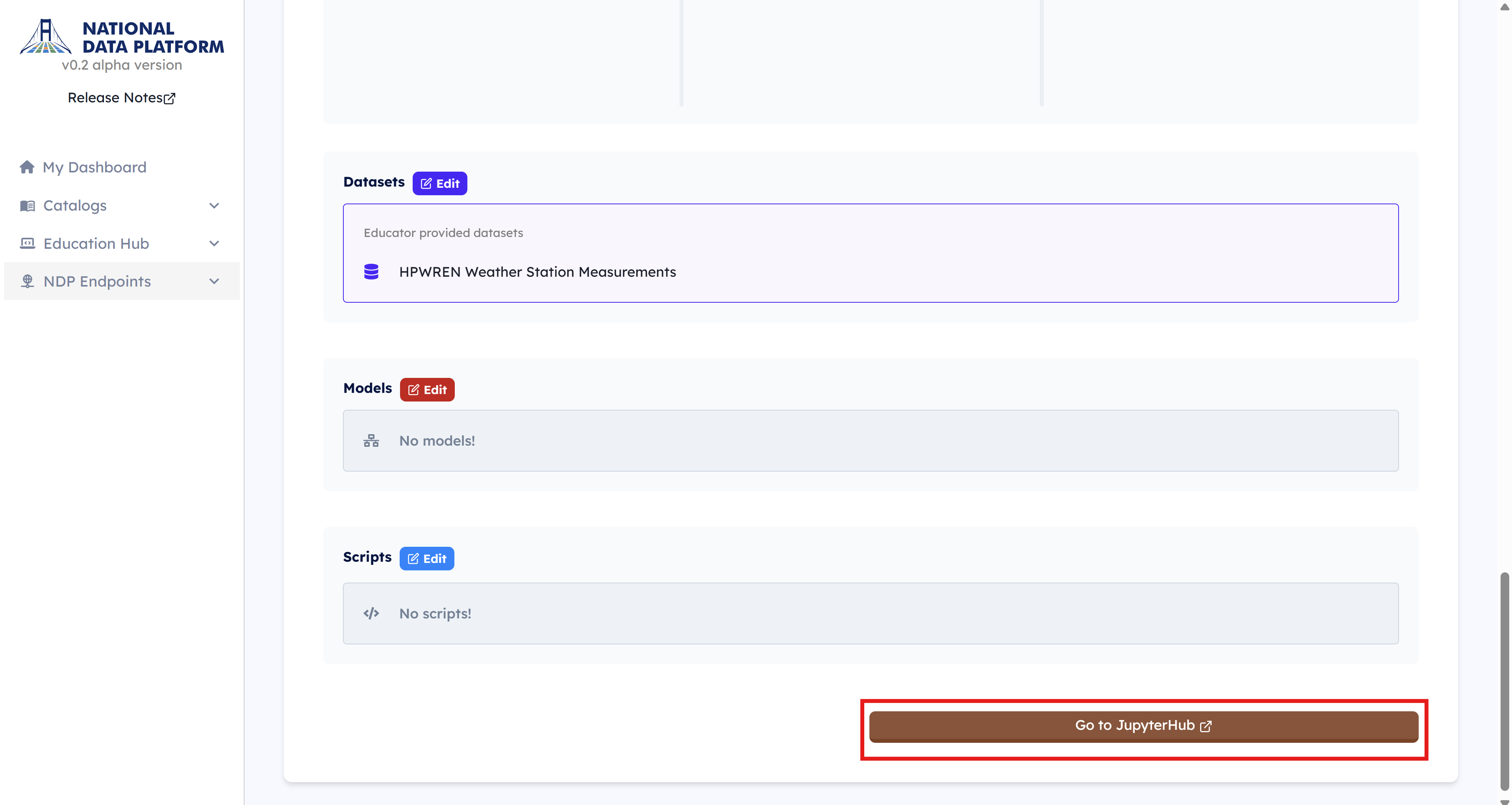

  • Scroll down and click the JupyterHub button.

You can find the same button for any Workspace within your research projects or group workspaces.

2. Configure Your Resources

Once in JupyterHub, reserve the following resources:

Region: West
Zone: UCSD
GPUs: 0
Cores: 1
RAM: 8 GB
GPU Type: Any
/dev/shm for pytorch: Do not check
Image: Minimal NDP Starter JupyterLab
Architecture: amd64

Click on Start and wait for your server to start running.

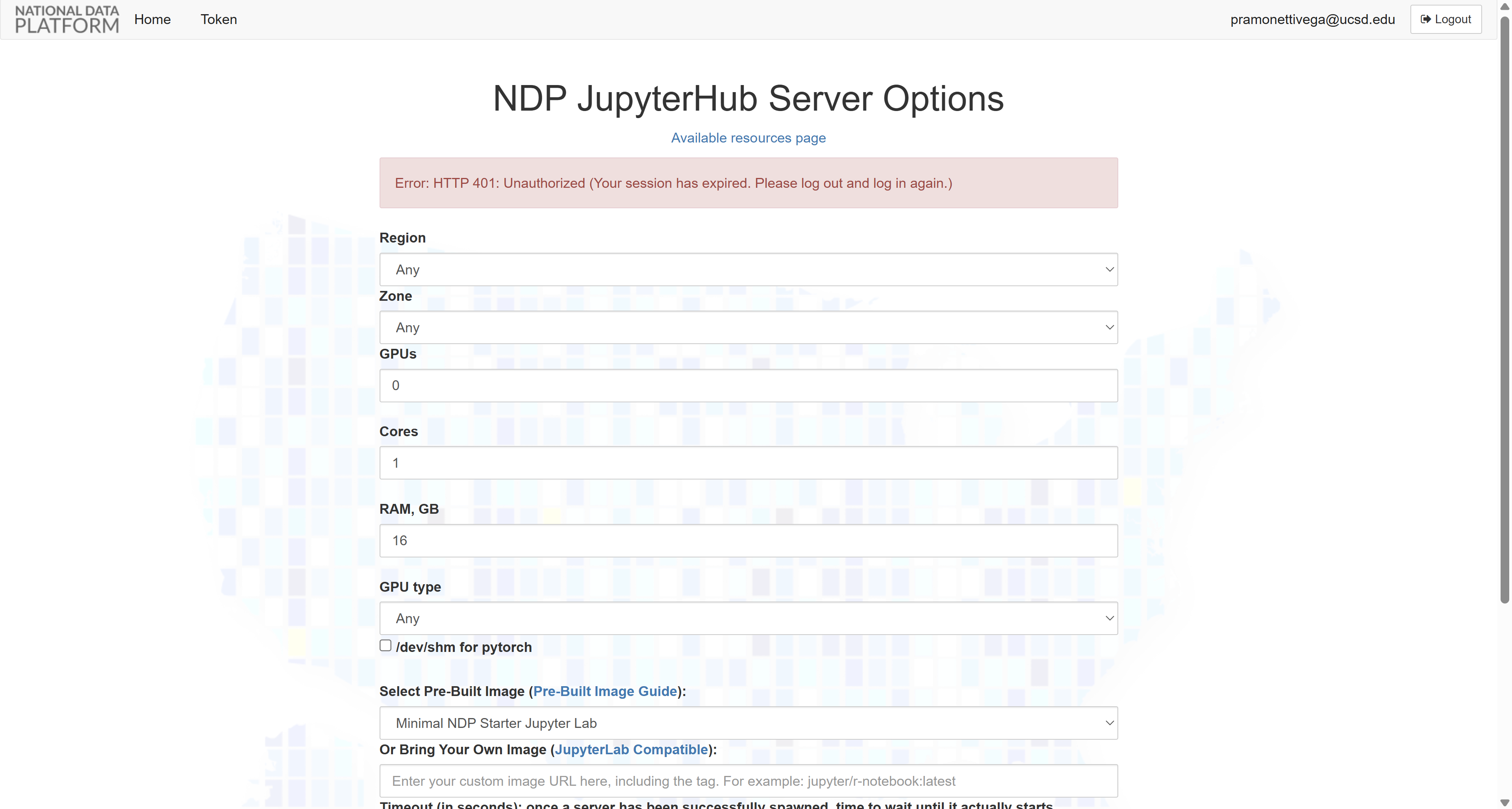

3. Troubleshooting Login Issues

If you encounter an error when launching the server:

  • Click Logout (top-right corner).

  • Log in again and repeat step 2.

4. Navigate and Set Up Your Workspace

  • On the left panel, locate the NDP Widget.

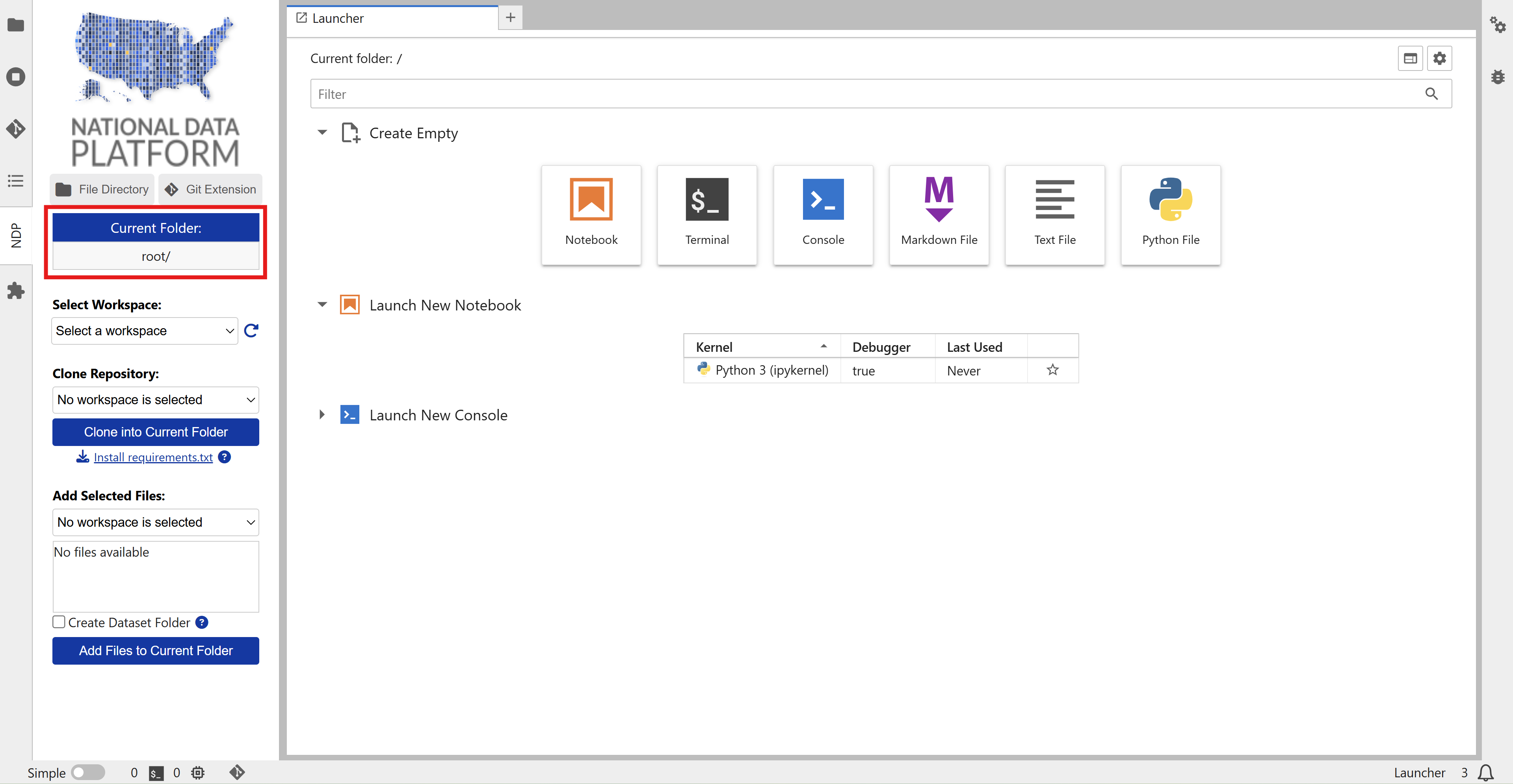

  • Click the Current Folder window.

  • Double-click on your User Persistent Storage to work in a folder with permanent storage (10GB limit).

  • Return to the NDP Widget by clicking the NDP button on the left panel.

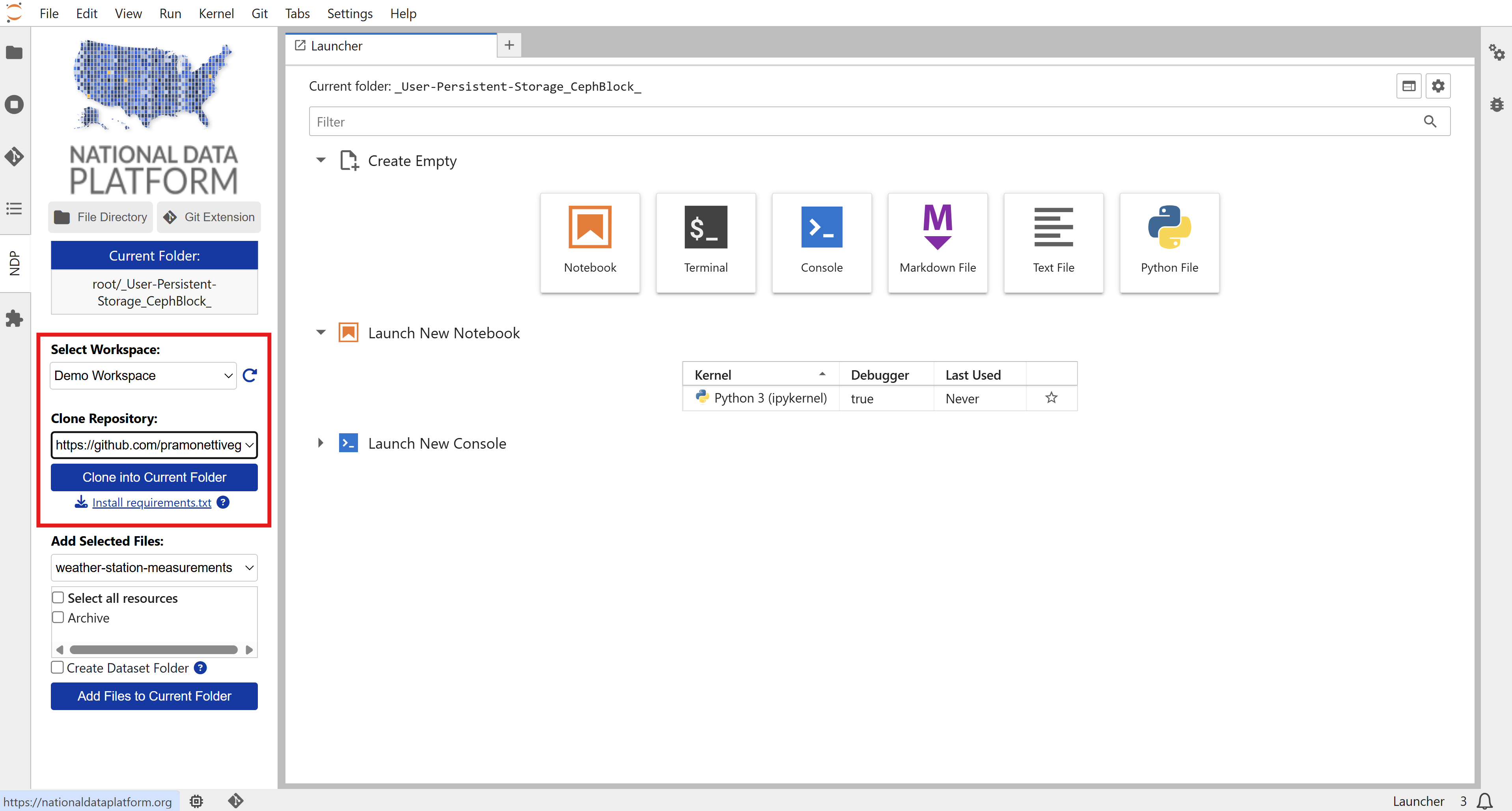

  • Open the Select Workspace dropdown and choose Demo Workspace.

  • Click Clone into current folder and wait for the repository to finish cloning.

  • Go back to Current Folder and open the newly created demo-workspace directory.

5. Install Workspace Dependencies

  • Return to the NDP Widget, and click Install requirements.txt.

  • Wait for the log file to appear.

Info

If the .log file doesn't appear, click the button again. Sometimes, the installation completes but the log file isn’t generated on the first attempt.

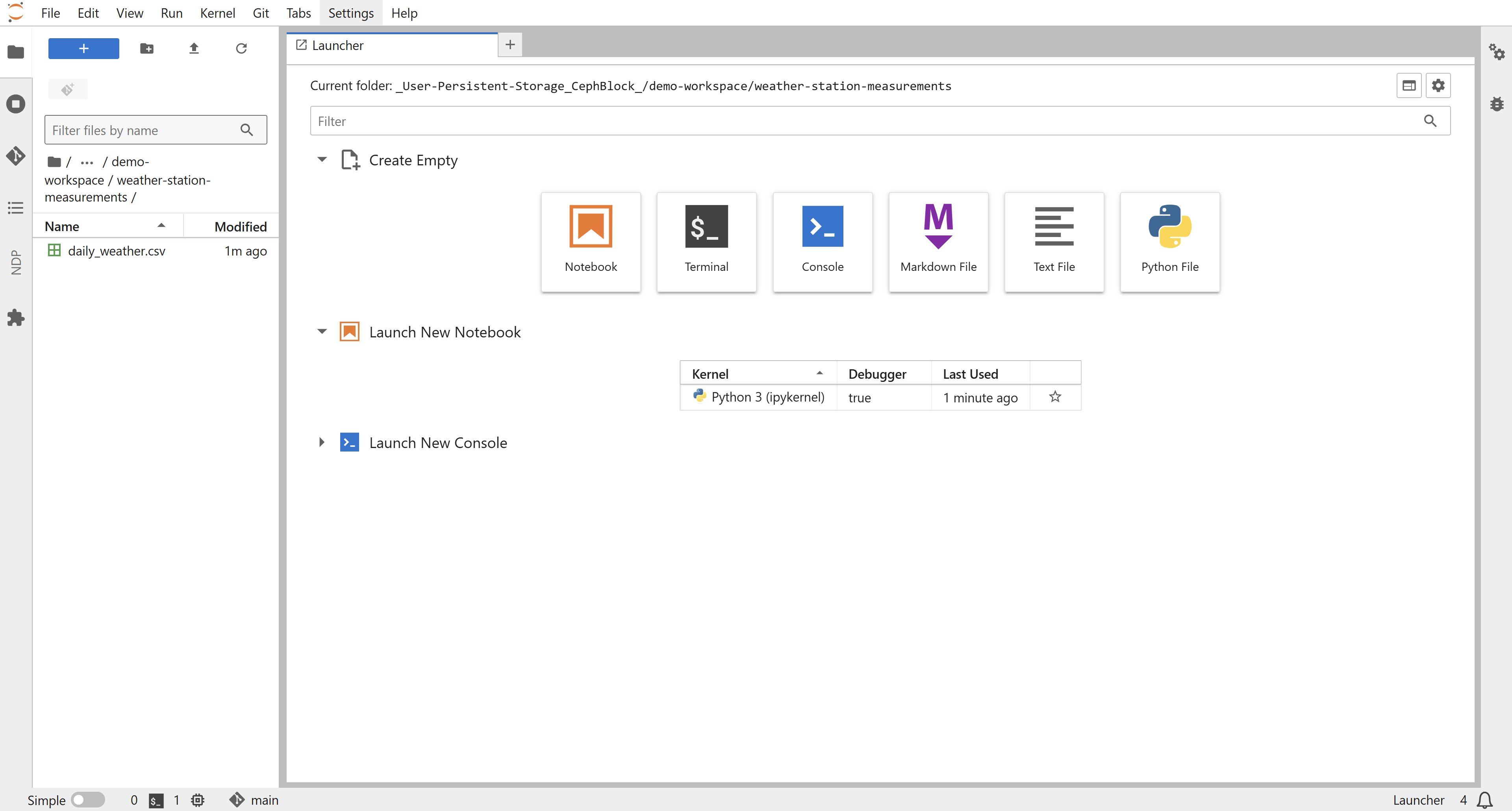

6. Add the Dataset

  • In the NDP Widget, under Add Selected Files, choose:

    • Dataset: weather-station-measurements

    • Resource: San Diego Weather Sample

  • Check Create Dataset Folder.

  • Click Add resources to current folder to download the dataset. The download may take a few seconds.

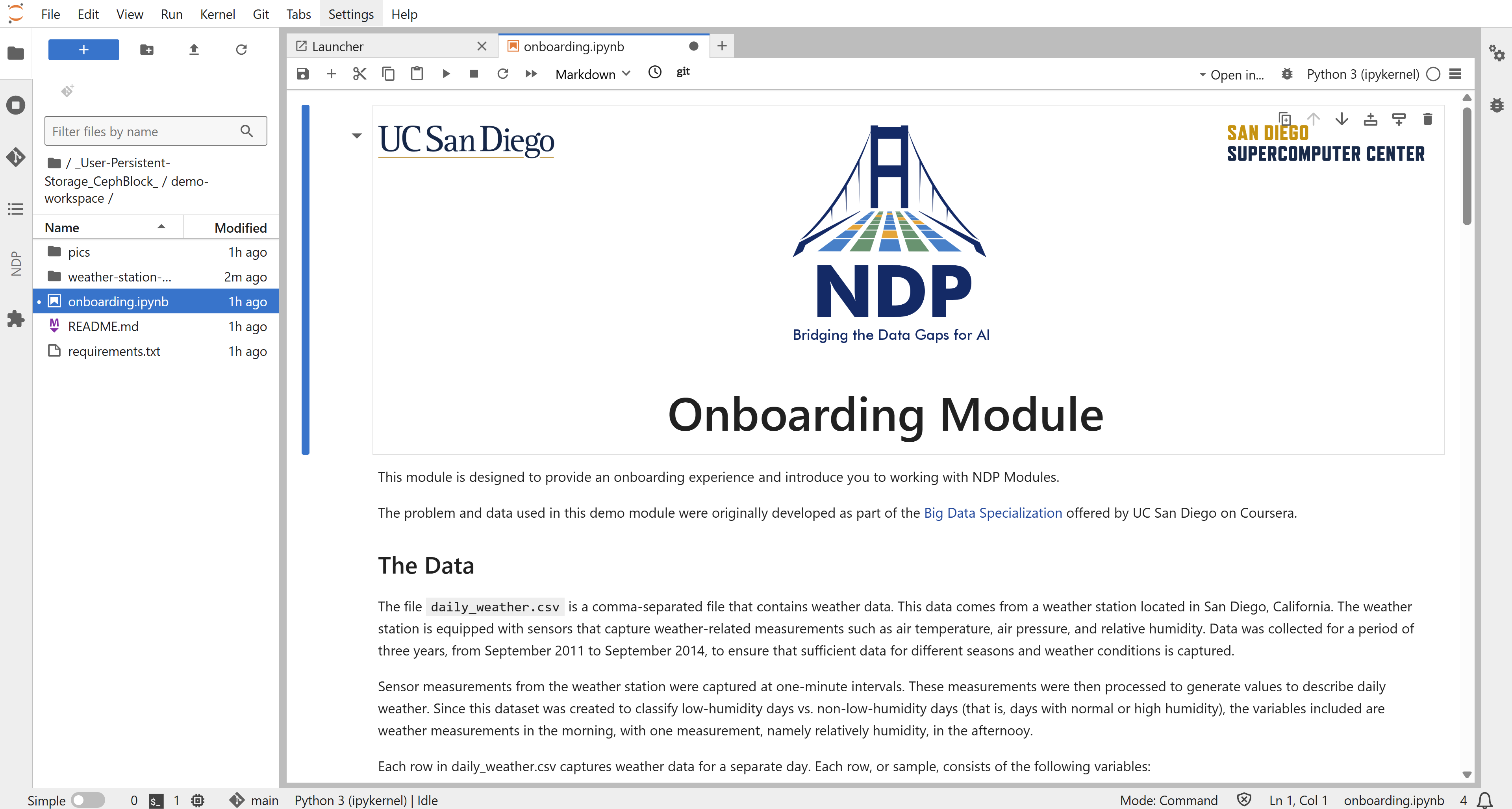

7. Complete the Onboarding Notebook

  • Go back to the Current Folder and open the demo-workspace directory.

  • Open the file onboarding.ipynb and complete it by following the instructions in the notebook.

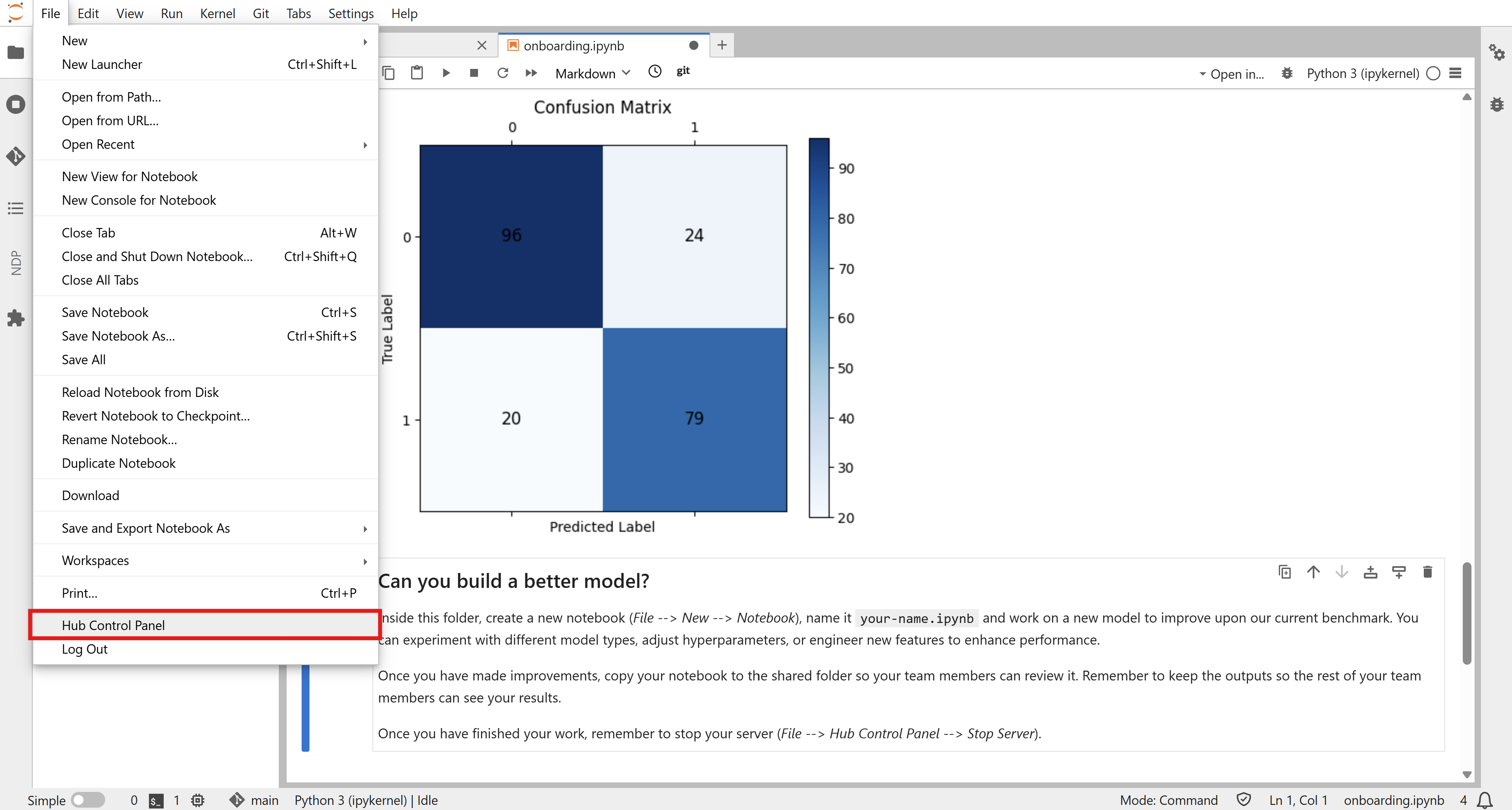

8. Stop Your Server When Finished

  • Go to File (top left corner) → Hub Control Panel → Stop Server to shut down your environment when you're done.
