Workspace Tutorial
In this tutorial we are going to create and work for the first time with an NDP workspace.
Setup
- Go to the National Data Platform site and login.
- On the top bar menu, select Workspaces. At this point, you will have no workspaces.
- Select Create a workspace and fill the form fields. For the purposes of this tutorial, you can fill it with the following info:
- Name: demo-workspace
- Description: This is my first NDP Workspace
- Instructional Text: Use this workspace as a demo
- Once you fill the form, click on Open new workspace.
Adding Resources
When a new workspace is launched, it automatically becomes the current workspace.
All resources added from the catalog will be associated with this active workspace. If you have multiple workspaces, you can switch the current workspace by selecting the Switch button in the workspace box of the desired workspace.
![Switch](../images/switch.png)
This will designate it as the current workspace moving forward.
Adding GitHub URL

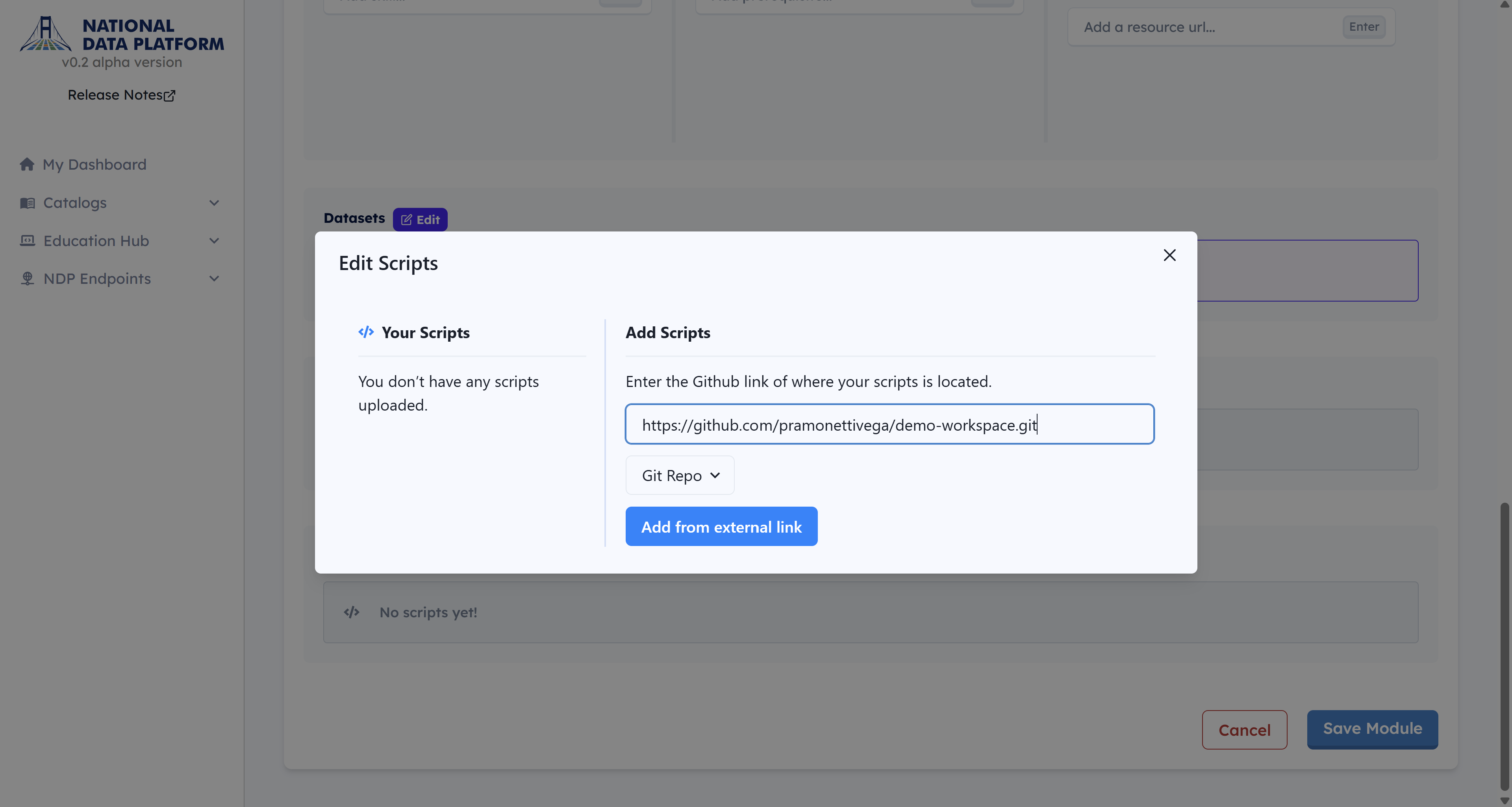

The first resource we'll add to the workspace is a GitHub repository.
- Click on the CURRENT WORKSPACE box.
- Select Add a GitHub URL. For this tutorial, use the following URL:
https://github.com/pramonettivega/workspace-tutorial.git
. You can view the sample repository at this link. - Enter the GitHub URL in the provided field and click Add.
Provide the .git link
⚠️ Important: Make sure the GitHub link you provide ends with .git
.
Example: https://github.com/username/repo.git
Adding data
Now we will add data from the data catalog into our workspace.
- Go to the Data Catalog
- Locate the dataset to add to the workspace. In this tutorial, we are going to use Unifor Fuels Quic-Fire Simulation Runs Ensemble. To find it, search for the term PGML
- Once you locate the dataset, click on Add to workspace. This will add the data to the CURRENT WORKSPACE. That's why it is important to select the correct workspace when adding resources.
At this point, we have added data and a source code to our workspace. Now we can proceed to load our workspace into JupyterHub.
Using your workspace in JupyterHub
1.Go to NDP JupyterHub
2.For the purposes of this demo, we don't need major resources. Select the following fields:
- Region: Any
- GPU's: 0
- Cores: 1
- RAM, GB: 16
- GPU Type: Any
- Select Pre-Built Image: Minimal NDP Starter Jupyter Lab
- Architecture: amd64
3.Click on Start and wait for your server to start running.
4.Once you're inside JupyterLab, at your left you will locate the NDP Extension. Click on the NDP button.
5.In the extension, select your workspace using the dropdown menu.
![Select workspace](../images/select-workspace.png)
6.At the top of the extension, locate the current folder. By default, you will start in the root/
folder, but keep in mind that files placed here will not persist across sessions. To ensure your work is saved for future sessions, switch to the User_Persistent_Storage
folder. To do this, click on the current folder box, navigate to the desired folder (User_Persistent_Storage
), and then click the NDP button to return to the extension.
![User Persistent Storage](../images/persistent-storage.png)
7.Go to the third section of the extension, and click on Clone into current folder. This will clone the repo we added into our current folder (which is the User_Persistent_Storage
if you made the change in the previous step, or the root if you did not).
8.Navigate to the workspace-tutorial
folder and return to the extension. The folder contains a requirements.txt
file, which you can install by clicking Install requirements.txt.
![requirements.txt](../images/requirements.png)
Click the button to install the packages.
Environments are not persistent
⚠️ Important: In the current version of NDP, installed libraries and packages are not saved. Each time you return, you will need to reinstall the packages from your requirements.txt
file before you can start working.
9.Make sure to be in the correct current folder (in this case, the GitHub repository folder). In the datasets dropdown menu, you will see all the datasets that you previously added to the workspace, along with its associated resources. For this demo, you will select the last file on the list (uniform-pgml-success_list_simulation_run.csv
) and click on Add resources to current folder.
10.With your libraries installed and the data downloaded, go to the Jupyter Notebook included in the repository folder (NDP_PGML_EDA.ipynb
) and follow the instructions for its execution.
![Files](../images/files-list.png)
In this tutorial we have created our first workspace, added resources to it and executed a Jupyter Notebook. Use NDP workspaces for the development of your projects.
